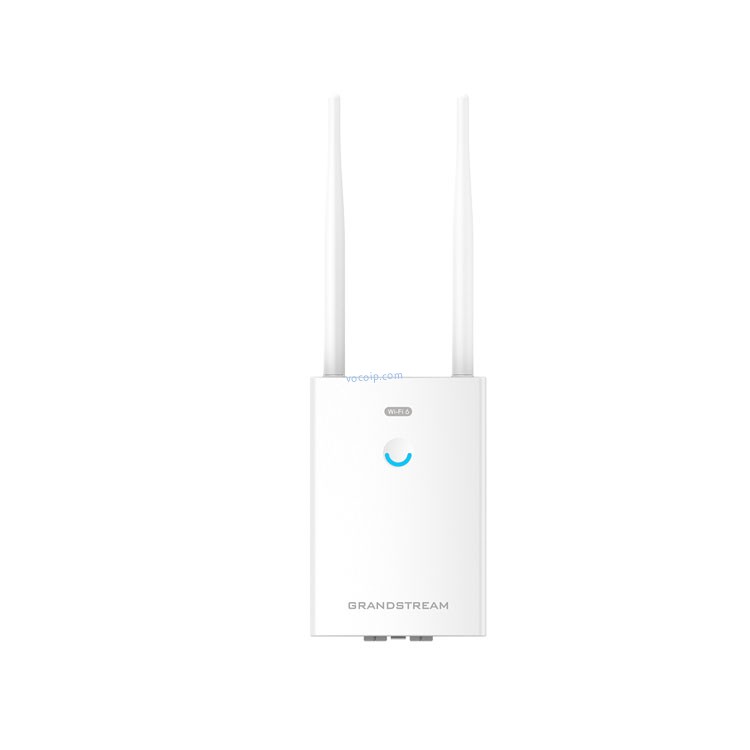

GWN7660LR - Wi-Fi6 室外AP\雙頻:2X2\吞吐量1.77G
GWN7660LR 是一款遠程 802.11ax Wi-Fi 6 接入點，旨在為室內和室外環境提供下一代網絡覆蓋。它提供 IP66 防風雨認證外殼、雙頻 2x2：2 MU-MIMO 技術和先進的天線設計，可將覆蓋范圍擴展到 250 米。
- 型號：
- 品牌： Grandstream
- PK參數：
產品介紹
GWN7660LR支持使用無控制器的分布式網絡管理設計，內嵌 AC 控制器（嵌入Web 用戶界面中），也支持 GWN.Cloud 云管理和入駐管理平臺，以便輕松管理本地部署的Wi-Fi AP。憑借快速漫游、高級QoS、低延遲實時應用、256+客戶端接入、集成 PoE/PoE+雙千兆網絡端口、以及 Mesh、強制網絡門戶功能、與潮流網絡 WP8xx 系列 Wi-Fi 話機和GRP26xx Wi-Fi話機的無縫對接，企業、倉庫、公園、醫院、學校等的理想室外 Wi-Fi 接入點。
功能特性
1.77Gbps 聚合無線吞吐量和 2 個千兆以太網端口
采用 DL/UL OFDMA 技術的雙頻 2×2：2 MU- MIMO
自動檢測 PoE 或 PoE+ 時的自供電適配
支持 256+ 個并發 Wi-Fi 客戶端設備
高達 250 米的覆蓋范圍
高級 QoS 可確保低延遲應用程序的實時性能
防黑客安全啟動和關鍵數據/控制鎖定
2根可拆卸/可更換天線的靈活性，適用于不同的應用場景
內嵌AC控制器自動發現、最大支持管理50個本地GWN系列AP
支持GWN.Cloud云管理 ; GWN Manager 批量部署
相關資源下載
Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax |
Antennas | 2 dual band external antennas 2.4GHz, gain 3.5dBi 5 GHz, gain 3.5dBi |
Wi-Fi Data Rates | 5G: IEEE 802.11ax: 7.3 Mbps to 1201 Mbps IEEE 802.11ac: 6.5 Mbps to 867 Mbps IEEE 802.11n: 6.5Mbps to 300Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 2.4G: IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps IEEE 802.11n: 6.5Mbps to 300Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network |
Frequency Bands | 2.4GHz radio: 2412 - 2484 MHz 5GHz radio: 5180 - 5825 MHz *Not all frequency bands can be used in all regions |
Channel Bandwidth | 2.4G: 20 and 40 MHz 5G: 20, 40 and 80 MHz |
System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
MU-MIMO | O 2×2:2 2.4GHz, 2×2:2 5GHz |
Coverage Range | Up to 250 meters *Coverage range can vary based on environment |
Maximum TX Power | 5G: 26dBm 2.4G: 30dBm *Maximum power varies by country, frequency band, and MCS rate |
Receiver Sensitivity | 2.4G 802.11b: -99dBm@1Mbps, -90dBm@11Mbps; 802.11g: -93dBm @6Mbps, -77dBm@54Mbps; 802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-72dBm @MCS7; 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS11 5G 802.11a: -95dBm @6Mbps, -77dBm @54Mbps; 802.11ac 20MHz: -71dBm@MCS8; 802.11ac: HT40:- 67dBm @MCS9; 802.11ac 80MHz: -64dBm @ MCS9; 802.11ax 20MHz: -63dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -58dBm @MCS11 |
SSIDs | s 32 SSIDs total, 16 per radio (2.4GHz & 5GHz) |
Concurrent Clients | 256+ |
Network Interfaces | 2× autosensing 10/100/1000 Base-T Ethernet Ports |
Auxiliary Ports | 1× Reset Pinhole |
Mounting | Outdoor wall or pole mount, kits included |
LEDs | 1× tri-color LEDs for device tracking and status indication |
Network Protocols I | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
QoS | 802.11e/WMM, VLAN, TOS |
Network Management | Embedded controller can manage up to 50 local GWN APs GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN APs |
Power and Green Energy Efficiency | PoE 802.3af/ 802.3at; Maximum Power Consumption: 12.9W |
Environmental | Operation:-30°Cto 60°C Storage: -30°C to 70°C Humidity: 5% to 95% Non-condensing |
Physical | Unit Dimension: 358.3mm(L)x115mm(W)x45.3mm(H); Unit Weight: 695g Entire Package Dimension: 275x185.5x89mm; Entire Package Weight: 995g |
Package Content | GWN7660LR 802.11ax Wireless AP, Mounting Kits, Quick Installation Guide |
Weatherproof Grade | IP66-level weatherproof capability when installed vertically |
Compliance | FCC, CE, RCM, IC |
